| rubber liner globe valve WCB |
|
|
|
| rubber liner globe valve WCB |
| body,
cover: cast steel,stainless steel,liningF4,F46 |
disc : |
| excellent carbon steel,stainless steel,liningF4,F46 |
| Stem: 2Cr13,stainless steel |
| packing: PTFE(F4) |
| stem nut: 2HMN58-2-2 |
| |
| |
| |
| |
| |
|
|
|
| |
|
|
| |
| Nominal diameter |

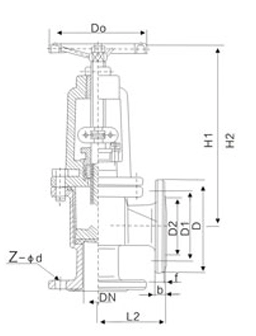

PN1.6(MPa)Main form and connection size |
Weight |
| DN |
L |
D |
D1 |
D2 |
f |
b |
Z-¦Õd |
D0 |
H1 |
H2 |
Kg |
| 15 |
90 |
95 |
65 |
43 |
3 |
14 |
4-¦Õ14 |
100 |
170 |
185 |
4.5 |
| 20 |
95 |
105 |
75 |
50 |
3 |
14 |
4-¦Õ14 |
100 |
200 |
220 |
4.5 |
| 25 |
100 |
115 |
85 |
60 |
3 |
16 |
4-¦Õ14 |
120 |
205 |
230 |
5.5 |
| 32 |
105 |
135 |
100 |
68 |
3 |
18 |
4-¦Õ18 |
140 |
230 |
260 |
8 |
| 40 |
115 |
145 |
110 |
80 |
3 |
18 |
4-¦Õ18 |
160 |
255 |
292 |
10 |
| 50 |
125 |
160 |
125 |
100 |
3 |
20 |
4-¦Õ18 |
180 |
270 |
315 |
12 |
| 65 |
145 |
180 |
145 |
115 |
3.5 |
20 |
4-¦Õ18 |
200 |
335 |
390 |
18 |
| 80 |
155 |
195 |
160 |
130 |
3.5 |
22 |
8-¦Õ18 |
240 |
295 |
465 |
24 |
| 100 |
175 |
215 |
180 |
150 |
4 |
24 |
8-¦Õ18 |
280 |
420 |
506 |
29 |
| 125 |
200 |
245 |
210 |
180 |
4 |
26 |
8-¦Õ18 |
320 |
490 |
600 |
46 |
| 150 |
225 |
280 |
240 |
210 |
4 |
28 |
8-¦Õ23 |
360 |
520 |
670 |
67 |
| 200 |
275 |
335 |
295 |
260 |
5 |
32 |
12-¦Õ18 |
400 |
590 |
740 |
100 |
| 250 |
325 |
405 |
355 |
319 |
5 |
36 |
12-¦Õ26 |
450 |
660 |
840 |
150 |
| 300 |
375 |
460 |
410 |
370 |
6 |
40 |
12-¦Õ26 |
500 |
710 |
900 |
250 |
|
 |
| |
|
|
|
|
|
|
